Installation Instruction Download
Spec Sheet Download

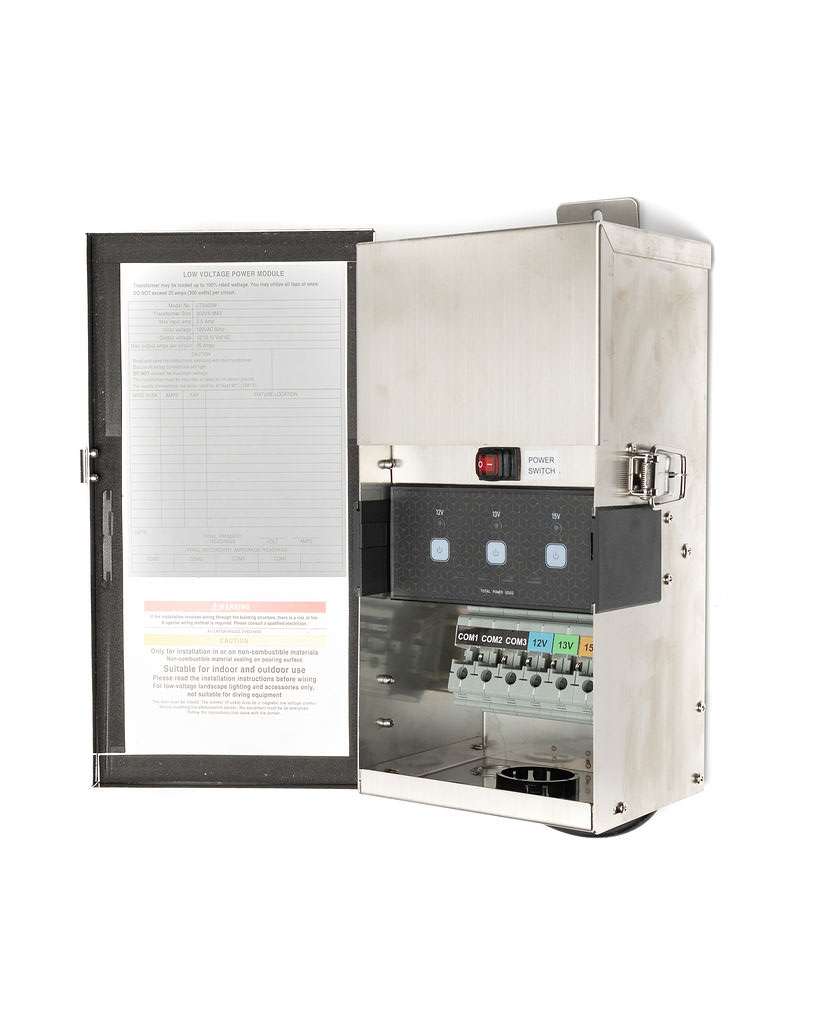

SMT300W
Magnetic Outdoor Non Dimmable
Stainless Steel Enclosure
Conforms to UL STD. 1838
Certified to CSA
STD. C22.2 №
250.0, 250.7
Electrical Parameters
Input Voltage:
120V 60Hz
Max. input current:
2.5A
at full load
Output voltage without load:
15VAC
Output voltage fully loaded:
14VAC
Max. Total Wattage:
300W
Max. per circuit:
100
W
Max. Output Current:
6.7A
per circuit.
Efficiency:
90%
