EMT-600-SSH

Magnetic Dimmable Outdoor
Stainless Steel Enclosure
Conforms to UL STD. 1838
Certified to CSA
STD. C22.2 № 250.0, 250.7



Electrical Parameters

Input Voltage: 120V 60Hz
Max. input current: 5A at full load
Output voltage without load: 12/ 13.2/ 14/ 15.2VAC
Output voltage fully loaded: 11.3/ 12.5/ 13.1/ 14.4VAC
Max. Total Wattage: 600W Max. per circuit:300W
Max. Output Current: 25/ 23/ 21/ 20A per circuit.
Efficiency: 93%
Load regulation: 0.04%

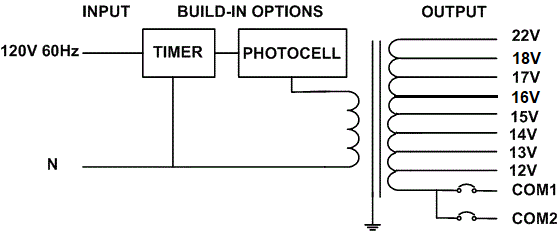

Electrical Diagram

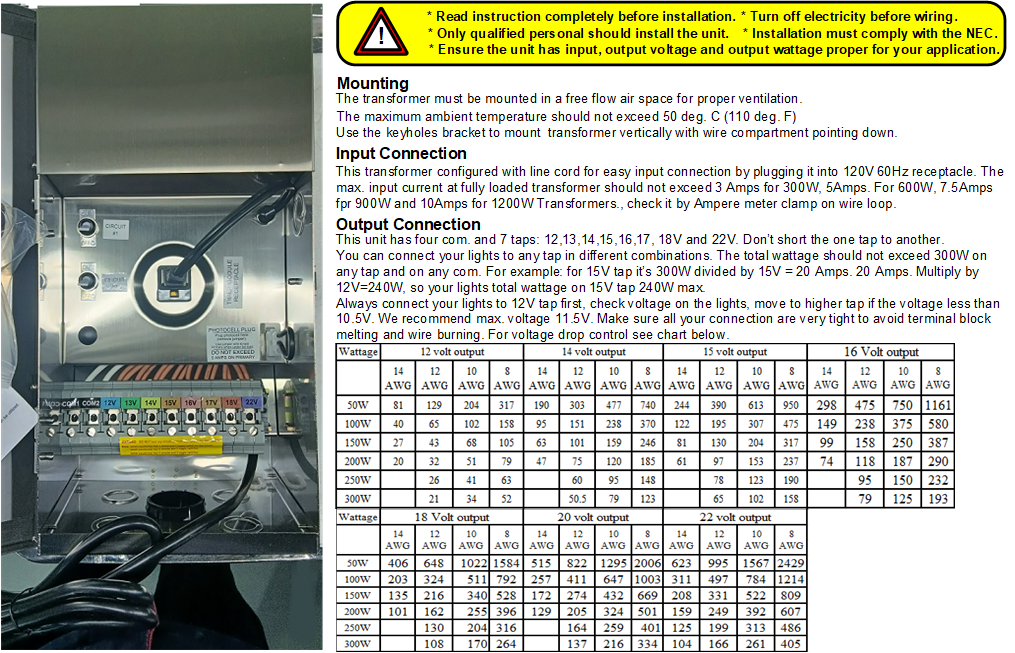

Remark
