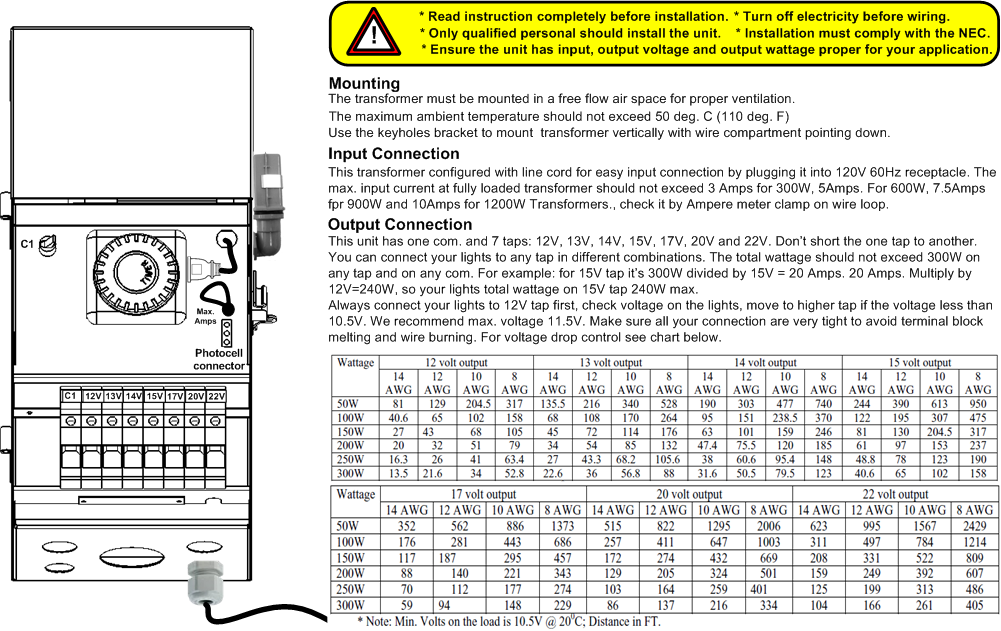

Installation Instruction Download
Spec Sheet Download
EMT-300SS-22E
Magnetic Outdoor
Stainless Steel Enclosure
5020005
Conforms to UL STD. 1838
Certified to CSA
STD. C22.2 №
250.0, 250.7
model
-
Electrical Parameters
Input Voltage:
120V 60Hz
Max. input current:
2.5A
at full load
Output voltage without load:
12.8/ 15.2/ 17.2/ 22.2VAC
Output voltage fully loaded:
11.6/ 14.5/ 16.5/ 23.6VAC
Max. Total Wattage:
300W
Max. Output Current:
25/ 20/ 17/ 14A
Efficiency:
93%
Load regulation:
7%
Ripple:
0%
